Sedimentological Reports
Sedimentary Geology and Diagenetic History of the Cretaceous Rocks of Northern Iraq
Introduction
This report provides a comprehensive description and interpretation of the lithology, facies, stratigraphy and diagenetic history of the Cretaceous succession in North Iraq. Reservoirs and seals are thoroughly documented, intervals with significant organic richness and oil shows are identified. Summaries of tectonic setting and other background information are also included. The results are placed in their broader context and exploration implications assessed, including discussion of established and new plays.
- Petrographic logs and reports for 19 wells in North Iraq - Total logged section - approx 69,000 feet
- 500 Photomicrographs
- 8 Correlation Panels, 106 A4 figures
Petrographic logs
Well |
Length of section (ft) |
| Adaiyah-1 | 1500 |
| Ain Zalah-16 | 3500 |
| Alan-1 | 2000 |
| Anah-2 | 7000 |
| Atshan-1 | 1500 |
| Bai Hassan-13 | 3000 |
| Chemchemal-2 | 2000 |
| Fallujah-1 | 7000 |
| Ibrahim-1 | 4500 |
| Injana-5 | 5000 |
| Jawan-2 | 2000 |
| Khleisia-1 | 500 |
| Kirkuk-109 | 7000 |
| Kirkuk-116 | 4500 |
| Kirkuk-117 | 2500 |
| Makhul-2 | 4500 |
| Mileh Tharthar-1 | 4000 |
| Mushorah-1 | 2000 |
| Pulkhana-5 | 5000 |

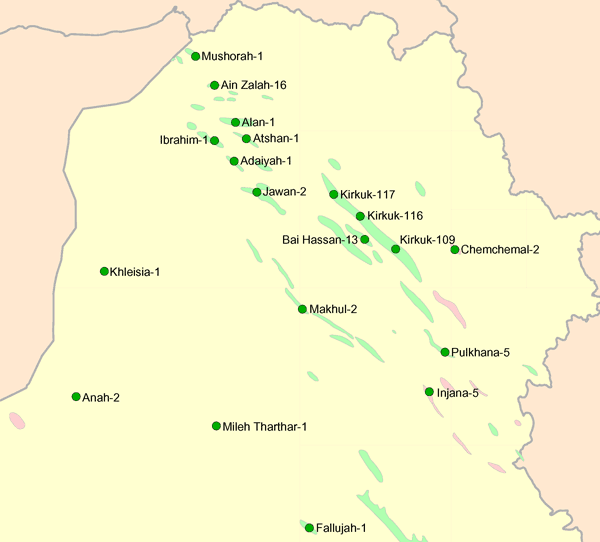

Locations of analysed wells
Report Contents Summary
Volume 1 presents our interpretations, stratigraphy, facies models, exploration plays and regional overview. Volumes 2-10 present results and interpretations for individual wells, with illustrative photomicrographs. Volume 11 (Enclosures) includes petrographic logs and correlation cross sections:
Report Index
VOLUME 1 SYNTHESIS AND INTERPRETATION OF RESULTS (125 pages text, 104 A4 figs)
VOLUME 1A
PART 1 INTRODUCTION
PART 2 ANALYTICAL RESULTS SUMMARY
PART 3 EXPLORATION ASPECTS
VOLUME 1B
APPENDICES
REFERENCES
VOLUME 2 - RESULTS FROM AIN ZALAH 16 AND ANAH 2
VOLUME 3 - RESULTS FROM BAI HASSAN 13
VOLUME 4 - RESULTS FROM FALLUJAH 1
VOLUME 5 - RESULTS FROM KIRKUK 109
VOLUME 6 - RESULTS FROM KIRKUK 116
VOLUME 7 - RESULTS FROM KIRKUK 117
VOLUME 8 - RESULTS FROM MILEH THARTHAR 1
VOLUME 9 - RESULTS FROM SUPPLEMENTARY WELLS
ADAIYAH 1, ALAN 1, ATSHAN 1, CHEMCHEMAL 2, IBRAHIM 1, INJANA 5, JAWAN 2, KHLEISIA 1, MAKHUL 2, MUSHORAH 1, PULKHANA 5.
VOLUME 10 - PHOTOMICROGRAPH ALBUM FOR SUPPLEMENTARY WELLS
VOLUME 11 - ENCLOSURES
1 ADAIYAH 1 PETROGRAPHIC LOG
2 AIN ZALAH 16 PETROGRAPHIC LOG
3 ALAN 1 PETROGRAPHIC LOG
4 ANAH 2 PETROGRAPHIC LOG
5 ATSHAN 1 PETROGRAPHIC LOG
6 BAI HASSAN 13 PETROGRAPHIC LOG
7 CHEMCHEMAL 2 PETROGRAPHIC LOG
8 FALLUJAH 1 PETROGRAPHIC LOG
9 IBRAHIM 1 PETROGRAPHIC LOG
10 INJANA 5 PETROGRAPHIC LOG
11 JAWAN 2 PETROGRAPHIC LOG
12 KHLEISIA 1 PETROGRAPHIC LOG
13 KIRKUK 109 PETROGRAPHIC LOG
14 KIRKUK 116 PETROGRAPHIC LOG
15 KIRKUK 117 PETROGRAPHIC LOG
16 MAKHUL 2 PETROGRAPHIC LOG
17 MILEH THATHAR 1 PETROGRAPHIC LOG
18 MUSHORAH 1 PETROGRAPHIC LOG
19 PULKHANA 5 PETROGRAPHIC LOG
20 TITHONIAN TO ALBIAN KHLEISIA HIGH TO BASIN (PULKHANA 5)
21 NEOCOMIAN TO ALBIAN CORRELATION SECTION 1
22 NEOCOMIAN TO ALBIAN CORRELATION SECTION 2
23 APTIAN TO ALBIAN SECTION IN NORTHERN AREA WELLS
24 ALBIAN - CENOMANIAN TO MAASTRICHTIAN SHELF TO BASIN TRANSITION
25 CENOMANIAN TO MAASTRICHTIAN CORRELATION FROM MAKHUL TO BAI HASSAN
26 UPPER CRETACEOUS SHELF TO BASIN TRANSITION
27 NORTH SOUTH CROSS SECTION INDICATING TECTONIC CONTROLS AND COMPLEXITY OF UPPER CRETACEOUS DEPOSITION
